A2 Mount Adapter (1.2875×24)

Experience superior tactical performance, engineered precision, and exceptional reliability with the A2 Mount Adapter (1.2875×24). Crafted to exact industry standards, this product delivers uncompromised durability and effectiveness in the field.

Features & Performance Overview

The A2 Mount Adapter (1.2875×24) is designed for tactical operators, target shooters, and firearm enthusiasts seeking peak functionality. Every component undergoes rigorous testing to guarantee durability, smooth operation, and optimal safety.

Trusted External Resources

Learn more about firearms safety, technical specifications, and search benchmarks via trusted authority resources:
Google |
Bing |
DuckDuckGo.

Related Internal Links

Explore more premium firearm accessories and suppressor technology directly on Griffin Armament.

Detailed Product Description

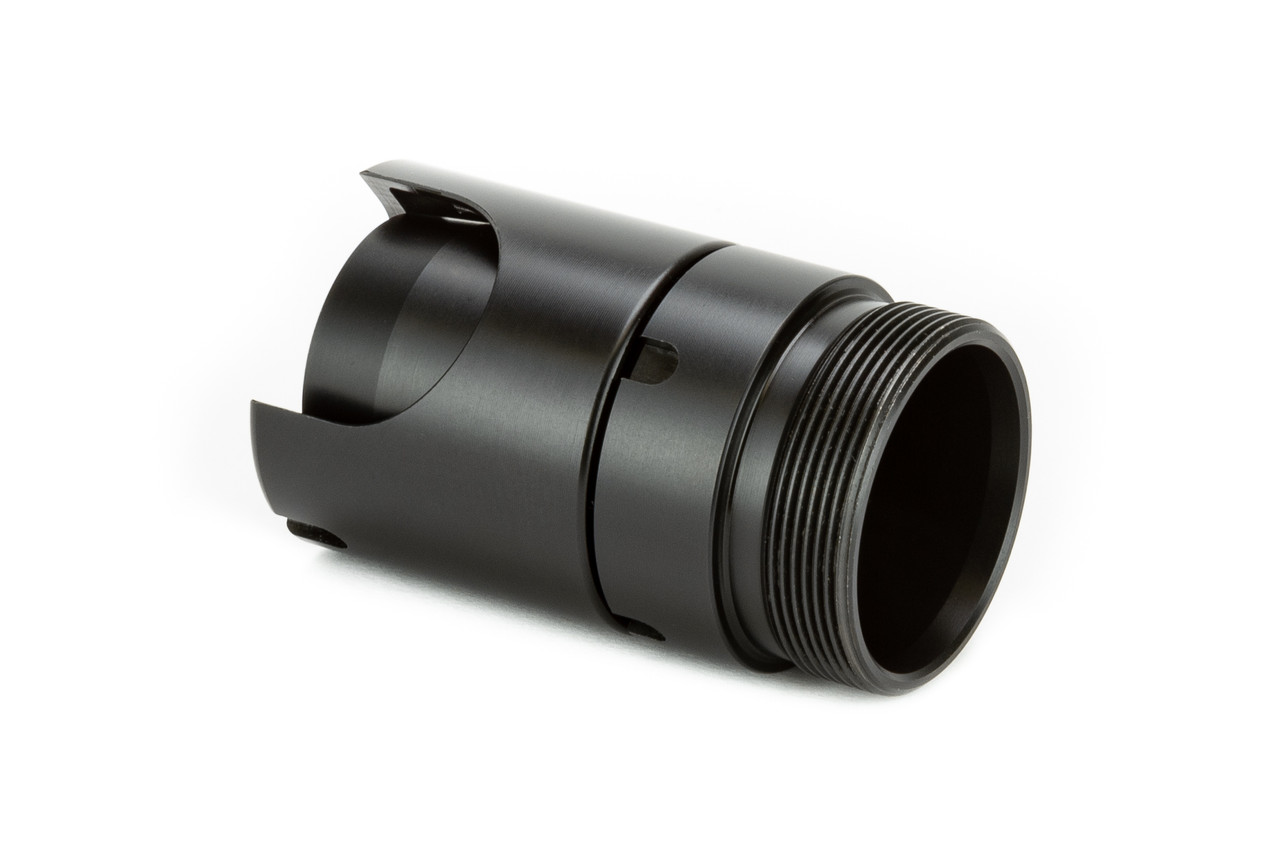

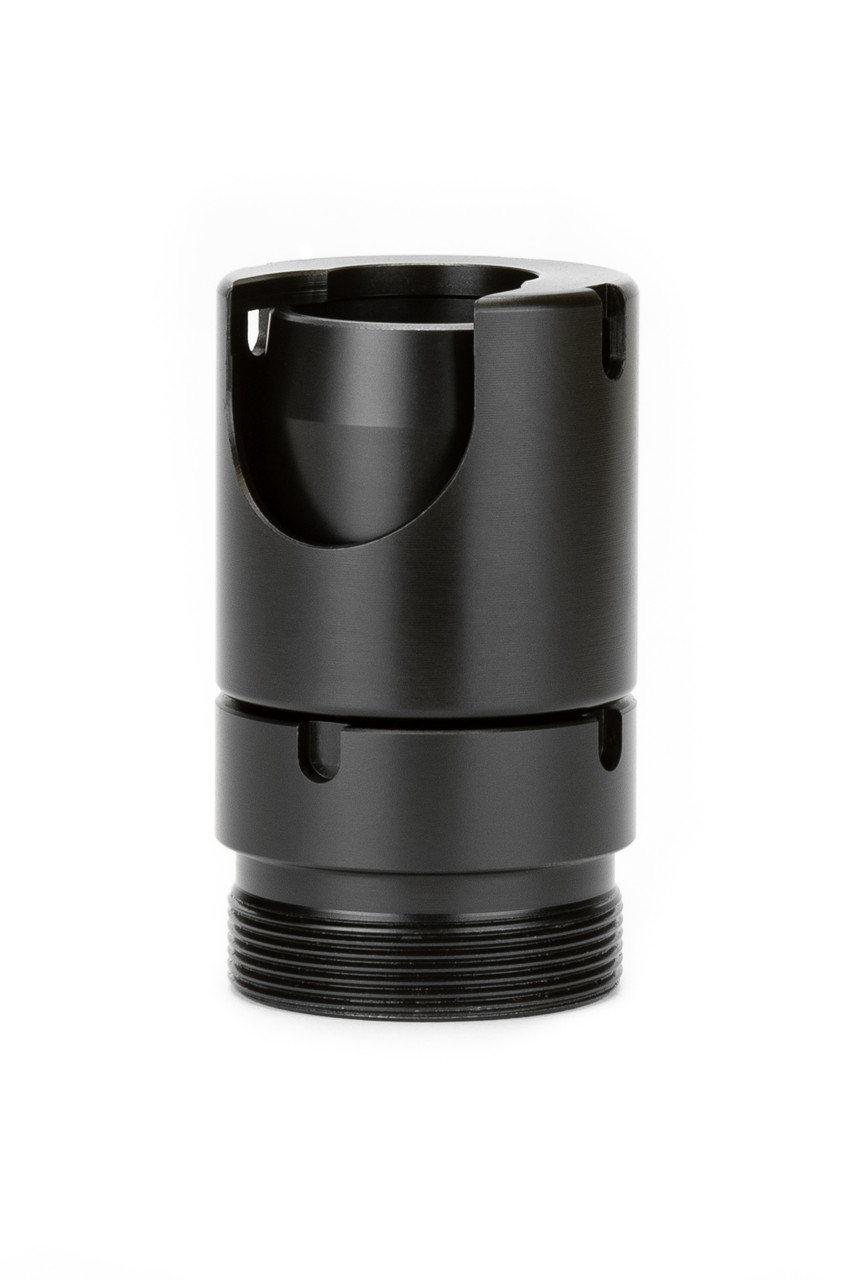

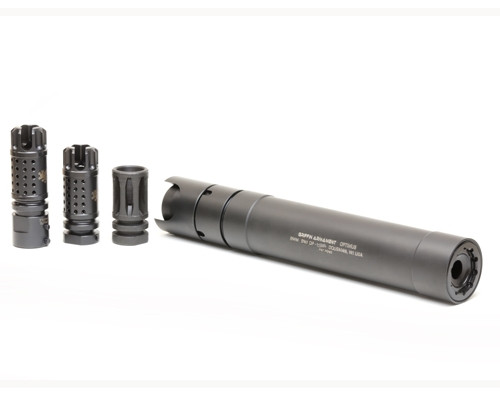

The A2 blast shield provides concussion mitigation to A2 muzzle devices, and Griffin Armament SDQD flash comps, as well as Griffin SDQD muzzle devices which are A2 length (listed below). Compatible with the Minimalist brake shield thread protector, and also capable of converting the Optimus silencer to an 8.4″ OAL 17.4 ounce, A2 mounted configuration.

The device and the collar are both compatible with the car stock wrench tool included with the Optimus silencer. Additionally a strap wrench (not included) may provide useful utility especially when removing accessory mount interfaces from the Optimus silencer.

Weighing 5.7 ounces, the Optimus A2 mount can be used on 5.56mm AR’s to and with the 30SD flash comp it will support centerfire calibers up to .308 Winchester.

Minimum barrel length caliber ratings [A2 mounted Optimus silencer with taper lok baffle]:
.308 on barrels down to 16″.
12.5″ 6.8SPC
8″ 7.62×39
8″ 300BLK super or subsonic
10.5″ 5.56mm

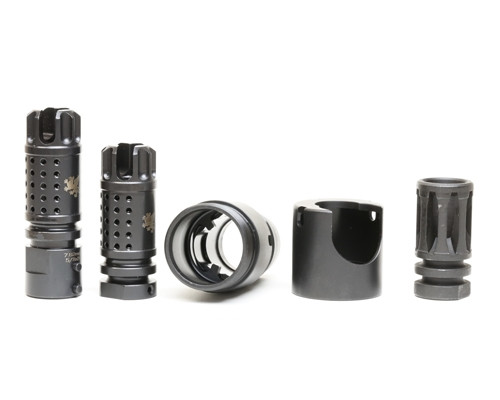

Current compatible Griffin mounts:

• GATE-LOK™ Flash Comp 5.56mm 1/2×28
• GATE-LOK™ Closed Tine Flash Hider 5.56mm 1/2×28
• GATE-LOK™ Hammer Comp 5.56mm 1/2×28
• GATE-LOK™ Flash Comp .30cal (7.62mm) 5/8×24
• A2 compensators (within-milspec)

Legacy Griffin compatible mounts:

• M4SD Paladin Brake
• M4SD Tactical Comp

This mount is NOT compatible with the GATE-LOK™ Stealth Flash Hider 5.56mm 1/2×28

The rear slip-coupler unscrews completely from the main body of the Blast shield. The coupler is slipped over the muzzle device at a 45 degree angle, then straightened (with the threads away from the barrel) to allow the coupler to slip into the rear accessory/BFA ring of an A2 device. The tapered end of the main body of the Blast Shield is then inserted between the coupler and the muzzle device. The coupler is then re-threaded onto the main body of the Blast Shield while still in the accessory ring.

We do not study the myriad of devices on the market. If a company wants to see if their device is compatible they can send us a blueprint of the device and a sample. Email: Tech@griffinarmament.com
