DUAL-LOK™ HUB Mount Interface (1.375×24)

Name: DUAL-LOK™ HUB Mount Interface (1.375×24) - griffin armament
SKU: DL1375x24
Price: 195.95 USD
Availability: InStock

Experience superior tactical performance, engineered precision, and exceptional reliability with the DUAL-LOK™ HUB Mount Interface (1.375×24). Crafted to exact industry standards, this product delivers uncompromised durability and effectiveness in the field.

Features & Performance Overview

The DUAL-LOK™ HUB Mount Interface (1.375×24) is designed for tactical operators, target shooters, and firearm enthusiasts seeking peak functionality. Every component undergoes rigorous testing to guarantee durability, smooth operation, and optimal safety.

Trusted External Resources

Learn more about firearms safety, technical specifications, and search benchmarks via trusted authority resources:
Google |
Bing |
DuckDuckGo.

Detailed Product Description

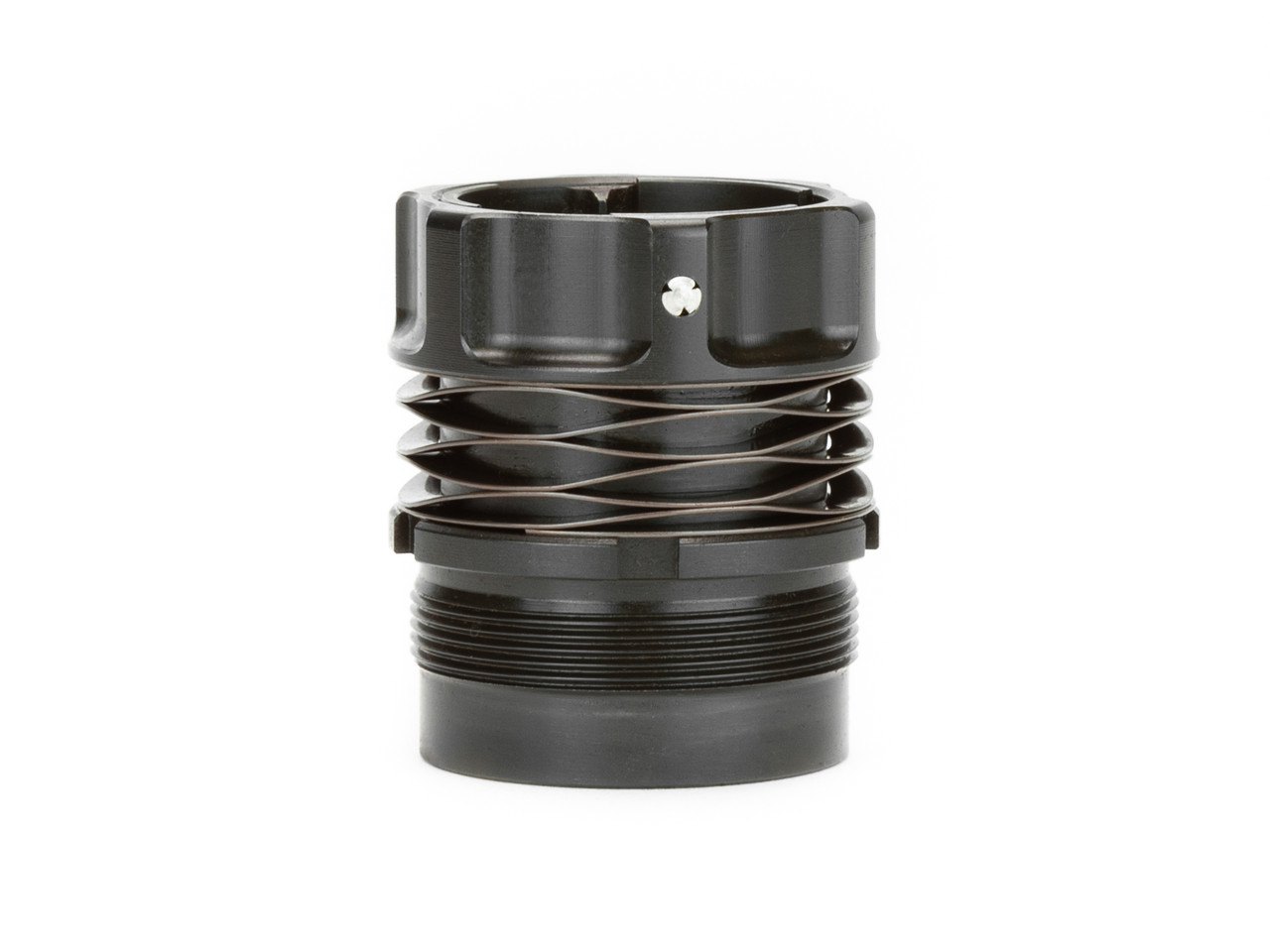

Griffin Armament is proud to introduce DUAL-LOK™, our newest QD mounting system for rifle suppressors. The DUAL-LOK™ system is comprised from two components, the DUAL-LOK™ Mount or equipped suppressor and the DUAL-LOK™ muzzle device (of your choice). This page is for the DUAL-LOK™ HUB Mount, a 1.375×24 threaded interface.

A quality QD system should be accurate, robust, reliable, require minimal training, and be free of wear prone metal on metal teeth or ratchets, thereby guaranteeing a longer trouble free service life with minimal maintenance needed. Griffin’s DUAL-LOK™ QD mounting system was designed around these objectives.

What makes this mounting system unique? It is a combination of desirable mechanical features and performance characteristics in a lightweight, compact system. DUAL-LOK™ combines a precision, sealing, and alignment taper interface with a stub ACME thread, and provides ease of secure attachment. A robust wave spring provides a reliable and positive heat-resistant spring action to the redundant locking collar (second locking feature). The locking collar is semi permanently installed to the mount via factory press slpined, stainless steel, taper pins. Since the mount has no wear prone metal on metal sliding actions like many other mounts, there is no need for the operator to disassemble the system. This locking ring includes three anti-rotation splines which ensure the suppressor will not come off inadvertently. The muzzle device integrates 60 machined mounting position grooves which is doubled by the mount’s two locking positions, hence the double entendre DUAL-LOK™. How is this achieved? The mounts’ two locking positions are machined out of phase of one another by 3 degrees which provides the 120 effective locking positions and ensures a tightly mounted and locked suppressor. When the suppressor is installed only one of the two positions will generally function by allowing the spring to push the locking collar rearward over the splines.

Substantial efforts are taken in the manufacturing and inspection of the DUAL-LOK™ products to ensure Griffin customers are outfitted with the best QD mounting systems available.

Diameter:	1.5″ [unit], with 1.375×24 [threads]
OAL:	1.7″
Weight:	3.0 ounces
Materials:	17-4PH stainless steel, 17-7 stainless spring steel
Finish:	Black Nitride

KEY POINTS :

Utility patent-pending
Wear free mounting system, requires no consumable parts
Taper lock interface ensures security and accuracy
ACME thread provides speed of attachment
Locking ring incorporates 3 anti-rotation splines to eliminate inadvertent loosening
120 effective positions ensure a rock-solid suppressor mount and provide extremely low POI shift
17-4 stainless steel
Robust wave spring
2 Locking positions and a central unlock position
Nitrided black for increased surface hardness, corrosion, and wear resistance
