SR M-LOK Rail 13.5″ (Anti-Rotation)

Name: SR M-LOK Rail 13.5″ (Anti-Rotation) | Griffin Armament
Availability: InStock

Experience superior tactical performance, engineered precision, and exceptional reliability with the SR M-LOK Rail 13.5″ (Anti-Rotation). Crafted to exact industry standards, this product delivers uncompromised durability and effectiveness in the field.

Features & Performance Overview

The SR M-LOK Rail 13.5″ (Anti-Rotation) is designed for tactical operators, target shooters, and firearm enthusiasts seeking peak functionality. Every component undergoes rigorous testing to guarantee durability, smooth operation, and optimal safety.

Trusted External Resources

Learn more about firearms safety, technical specifications, and search benchmarks via trusted authority resources:
Google |
Bing |
DuckDuckGo.

Detailed Product Description

Griffin Armament® M-LOK compatible SR rails (Suppressor Ready) allow up to 1.5” outside diameter silencers to be mounted inside the octagonal M-LOK rail. This provides suppressor aficionados a sleek, and compact overall length to AR15 type firearms. This anti-rotation variant features a tab at the rear of the rail that locks into Griffin MK2 Upper Receivers to prevent unwanted rotation of the handguard under stress.

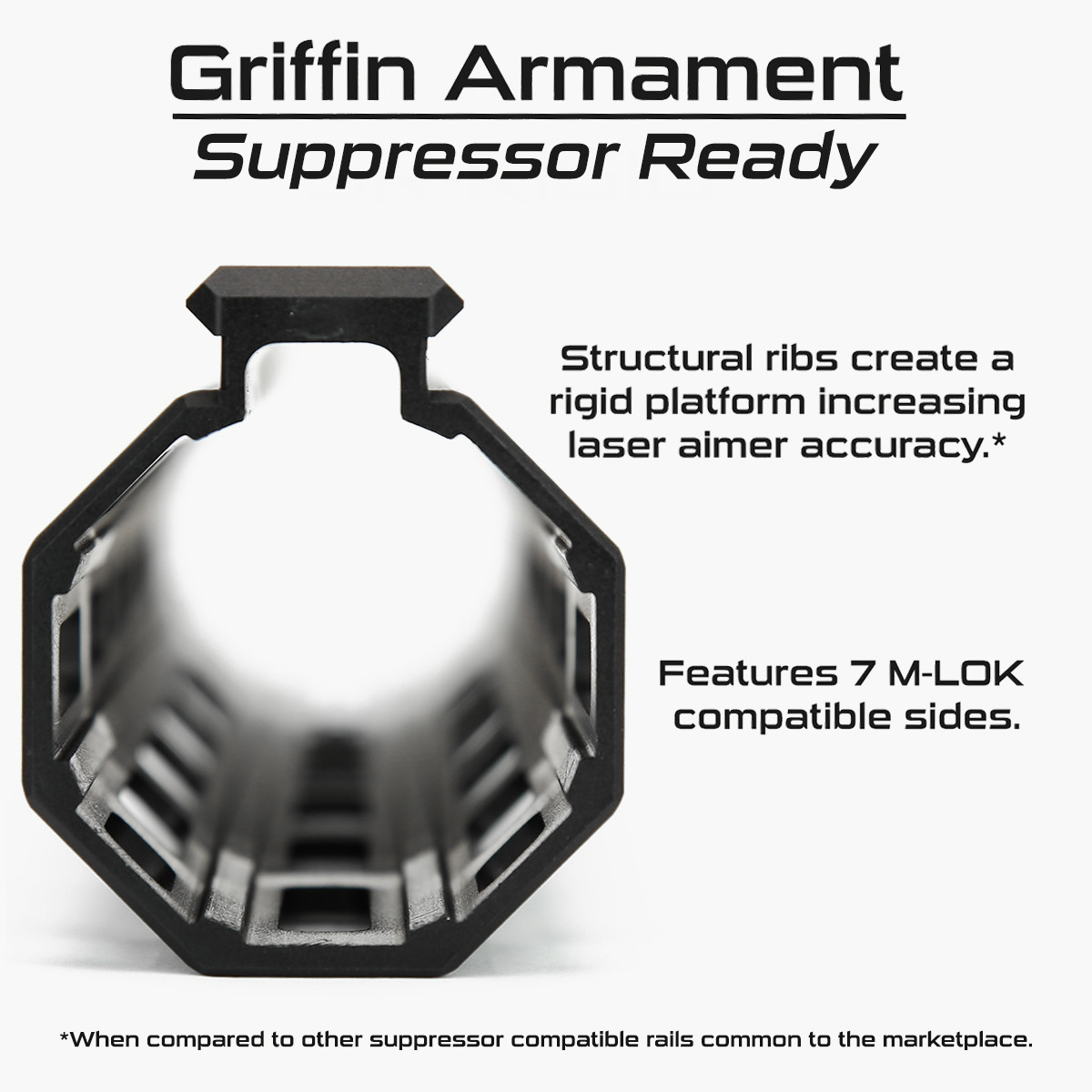

Design objectives of this rail were to provide a suppressor compatible rail, with increased rigidity and durability over similar weight and profile current market options. A custom extrusion provides significant internal reinforcements to reduce flex when loading the carbine on the rail.

SR rails features a close tolerance, heavy-duty, 6061 aluminum, T-6, type 3 hard coat anodized finish. The barrel nut can be easily installed to 35-85 ft/lbs using the included Griffin Armorers Wrench. The clamp geometry in the rear section of the rail is low profile and ergonomically pleasing even for long durations of extended carry at static security positions. Flat head T15 torx screws should be tightened to 25/in pounds. M-LOK flats on each 45 degree surface allow for mounting of your favorite M-LOK accessories. A contiguous picatinny top rail ensures repeatable and accurate mounting for night vision and thermal systems.

A shim is positioned between the clamp boss that locks into the barrel nut preventing pull-off of the rail. If you are looking for a high quality, feature rich, American made rail system for your AR15 type firearm look no further than Griffin Armament® SR rails.

Specs

Length: 13.5″
Height 2″
Internal Diameter 1.54″ (measured from inside of reinforcement spars)
Width: 1.79″
Weight Installed: 11.8oz

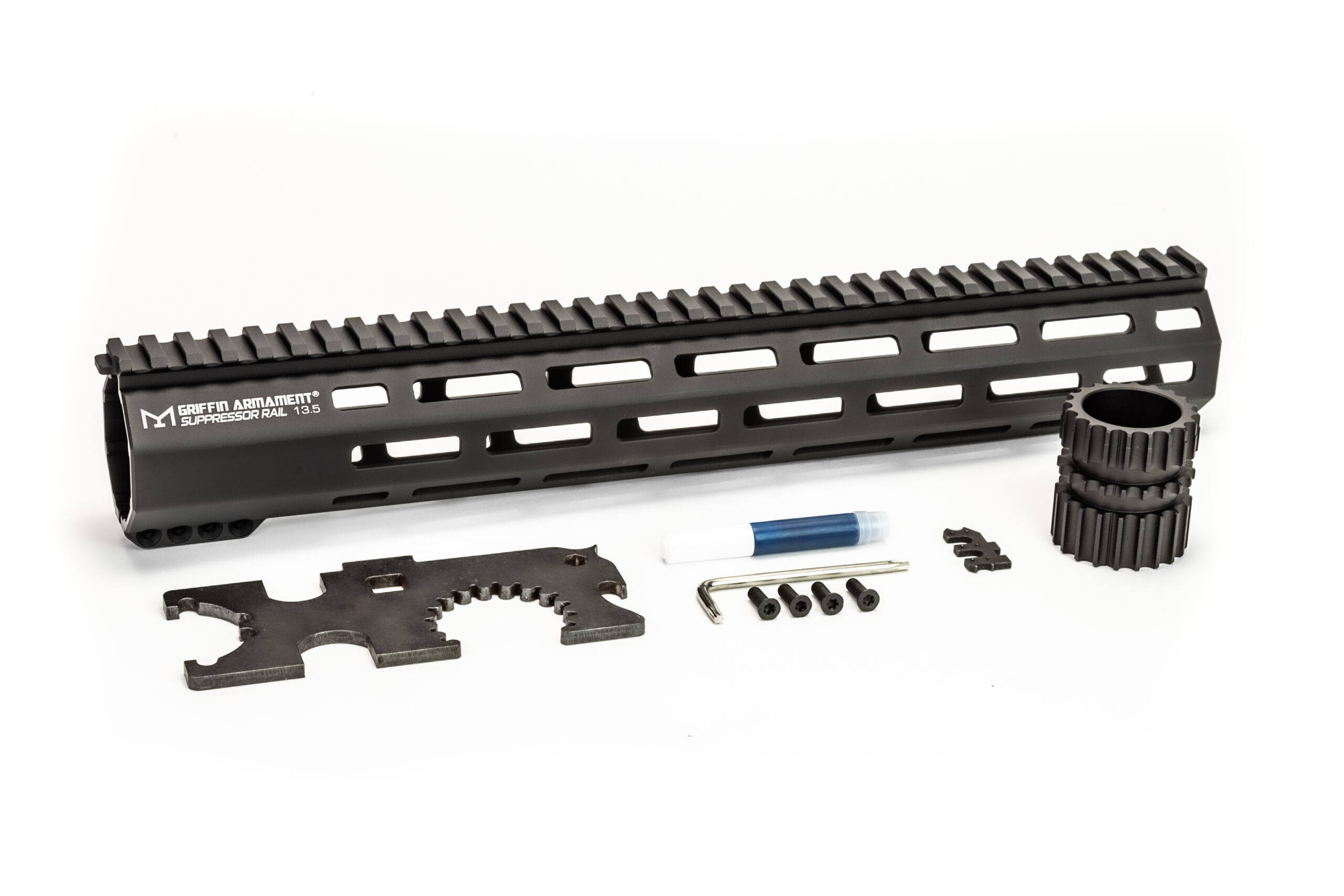

What’s in the Box

(1) 6061-T6 Hardcoat Anodized Suppressor Ready (SR) Rail
(1) 7075 T-6 Aluminum Anodized Barrel Nut
(4) T15 Torx fasteners for rail clamp
(1) T15 Torx wrench
(1) Griffin GI Armorers Wrench
(1) Thread Locking Compound *optional for use*
(1) Anti-Pull Off Clamp Shim

Features

SR M-LOK interface on all surfaces
Anti-Rotation Tab Compatible with Griffin MK2 Upper Receivers
Internal ribs provide increased strength-to-weight ratio
6061 T6 construction
Custom extrusion designed for pleasing ergonomics.
Heavy Duty Griffin Armorers wrench/multi tool
Included mounting hardware, and thread locker
Backed by Griffin’s Perpetual™ Warranty

Anodized Color Note: While we strive for consistency in the color of these components, there are some inherent differences in final color outcome that are out of our control due to the anodizing process which depend on many process parameters such as material alloy (6061 (Rails, optic mounts) 7075 (upper/lower receivers, charging handles, receiver extensions), material heat/lot, material process (extrusion, forging, impact extrusion, etc), material condition raw or machined/cut, anodizing water process temperature, acid etch time, rinse speed and time, dye concentration, anodize time, current intensity, blasting media condition, blasting angle variation, etc. This is well known at this point among consumers in the industry with “fifty shades of FDE” colloquialisms describing the variations in color possible in anodizing of colors lighter than black. The product you receive may be a somewhat different color than what is pictured due to these aforementioned variables in the electro-chemical process. Additionally, small cosmetic imperfections usually hidden by the black anodizing process are more easily seen due to the lighter pigment of the different dyes. Because these issues are inherent to the process, slight cosmetic imperfections may not be pulled from inventory and marked as a blem. This is a risk of purchasing a non-black product and should be expected to a degree. We will not sacrifice the functional performance of our products, and any issue that affects performance will not be sold. Anodizing fortunately doesn’t have the level of increased cost premium associated with the intensive labor involved in painting rifles (something we simply don’t have the available labor pool locally to support, nor do we believe the customers want to pay the premium for), so color being possible in that atmosphere at no additional cost is a major process benefit of anodizing. If the above mentioned conditions are unacceptable to you, we encourage you to purchase black anodized parts.
