Detailed Product Description

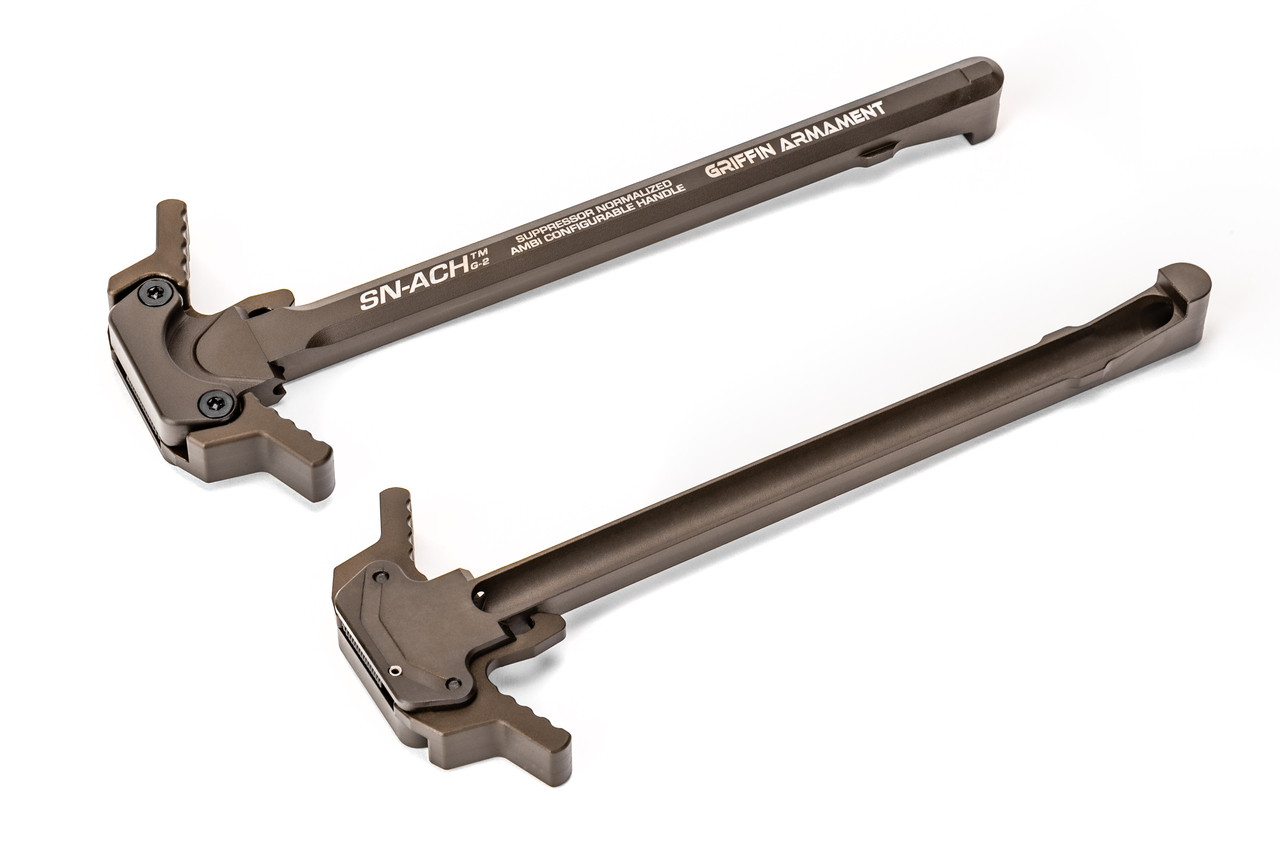

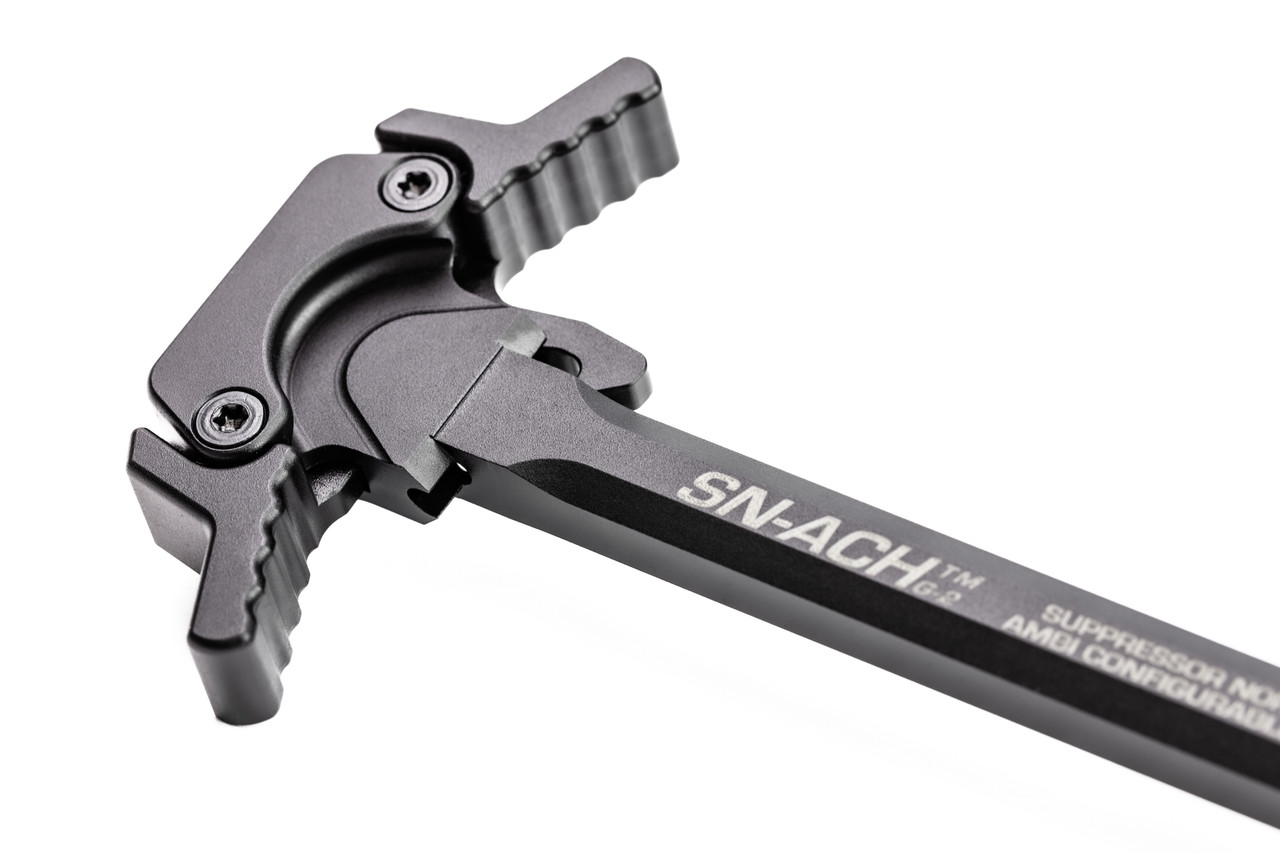

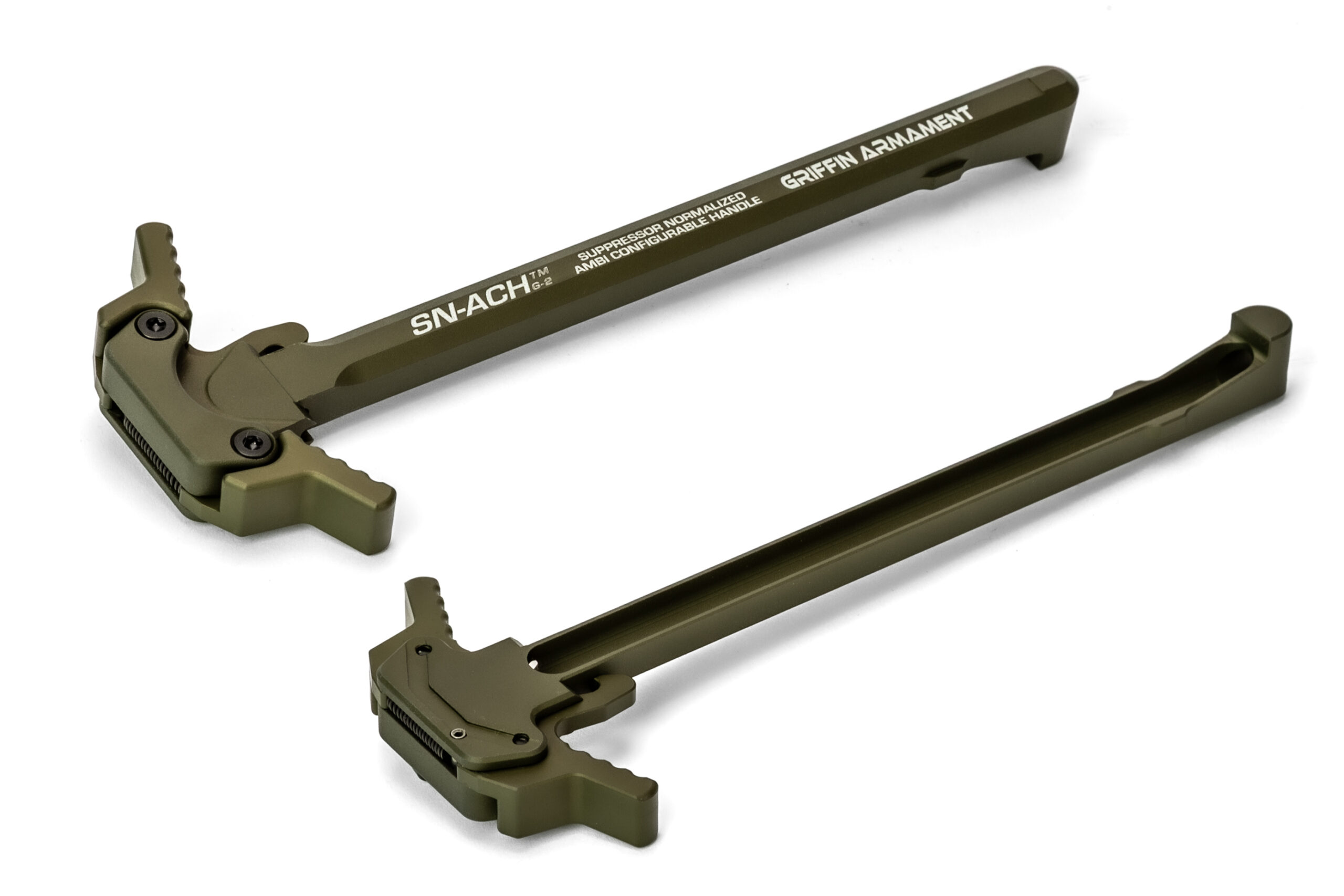

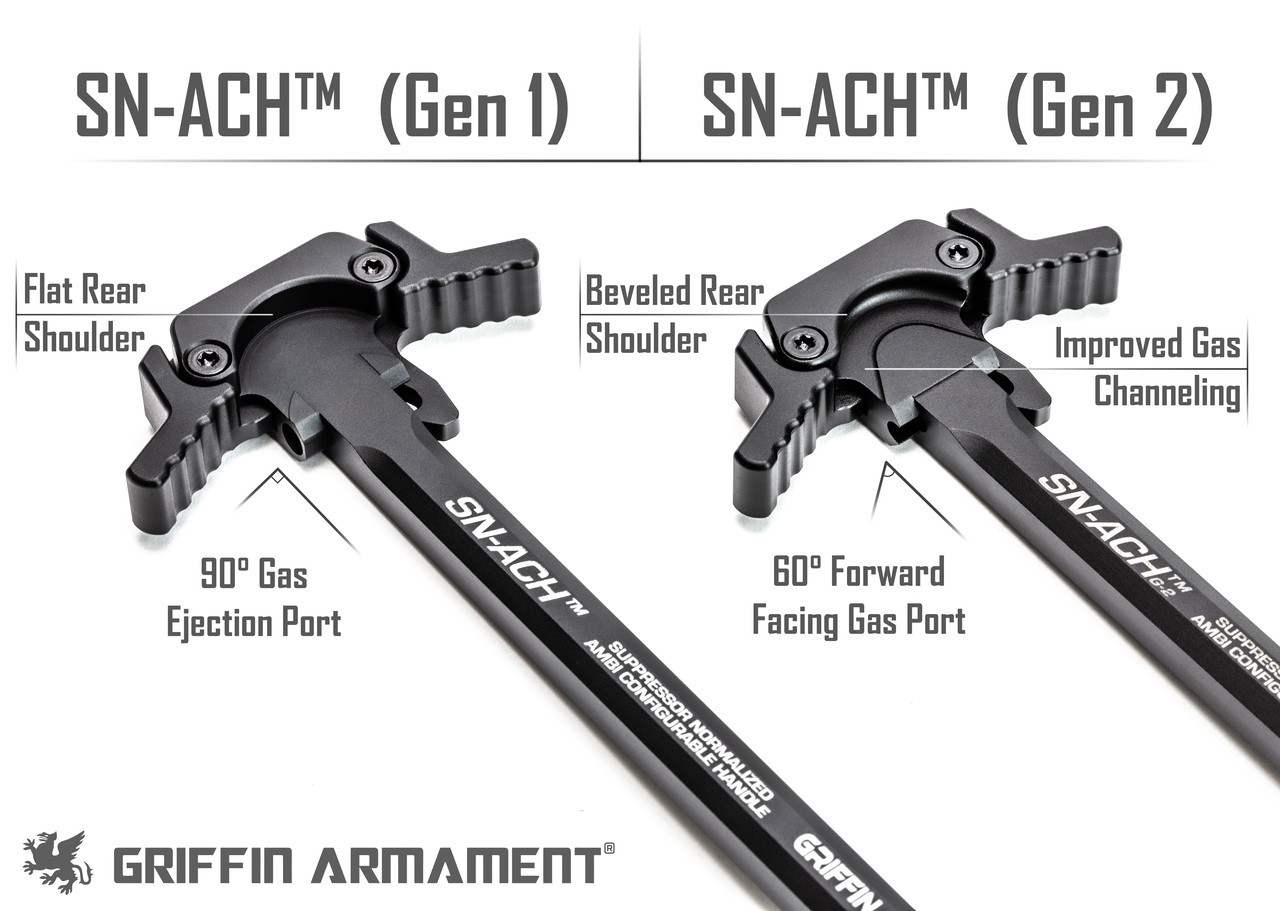

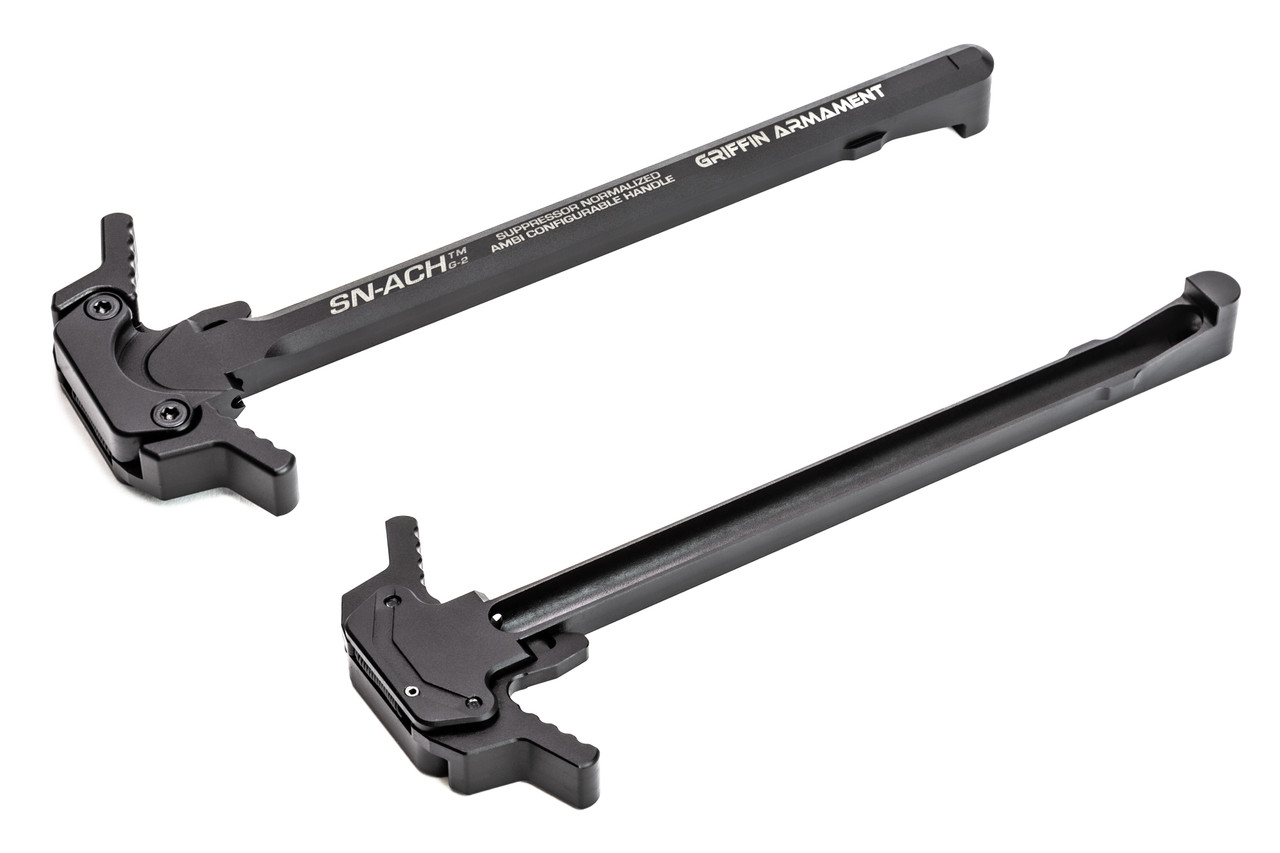

The SN-ACH™ (Gen 2) (Suppressor Normalized Ambidextrous Charging Handle) is a patented, modernized, feature filled charging handle that will satisfy any AR15 user. The SN-ACH™ – Gen 2 features an improved gas check groove and an improved, forward-facing 60° gas vent that reduces gas in the face of the shooter when using a suppressor by ejecting it forward and to the side of the firearm. The revised Gen 2 SN-ACH™ also receives a beveled rear shoulder to capture gases escaping from the rear of the receiver and redirect them forward and to the sides instead of into the shooter’s face. Improved fitment and machining of the Gen 2 SN-ACH™ creates a tighter seal between the handle and your upper receiver, resulting in decreased gas leakage at the rear of the receiver.

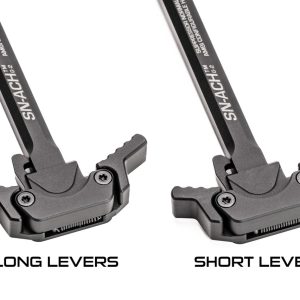

Configurable levers were also added so that a user could choose to run the included large lever, which works with gloved hands, or purchase and modularly use the smaller levers (available separately) without having to buy an entirely new handle at an excessive cost. The bolt carrier engaging hook features durable reinforced geometry for 30% increase in strength over milspec handles and approximately 3 times as strong as inferior 6061 handles which routinely break under hard use. Fitment bearing surfaces on the handle mating ensures reduced wobble fitment with the AR15 and AR10 upper receiver. The handle is made from 7075-T6 aluminum and hard coated for optimal wear resistance- the Griffin SN-ACH™ (Gen 2) is the finest charging handle available for the AR series family of firearms.

Want a second opinion? Classic Firearms put together a charging handle showdown video comparing many of the popular “gas-busting” charging handles available on the market. Check out their video here!

FITMENT:

Disclaimer: Due to variance in upper tolerances across manufacturers, we cannot guarantee fitment with other manufacturer’s uppers in all cases.

SN-ACH™ 15: Fits all typical AR-15/M-4/M16 family firearms (1.3 oz weight)

SN-ACH™ 10: Fits Armalite AR10, KAC SR25/M110, DPMS LR308 rifles and rifles with SR-25/AR10/LR-308 compatible charging handles.

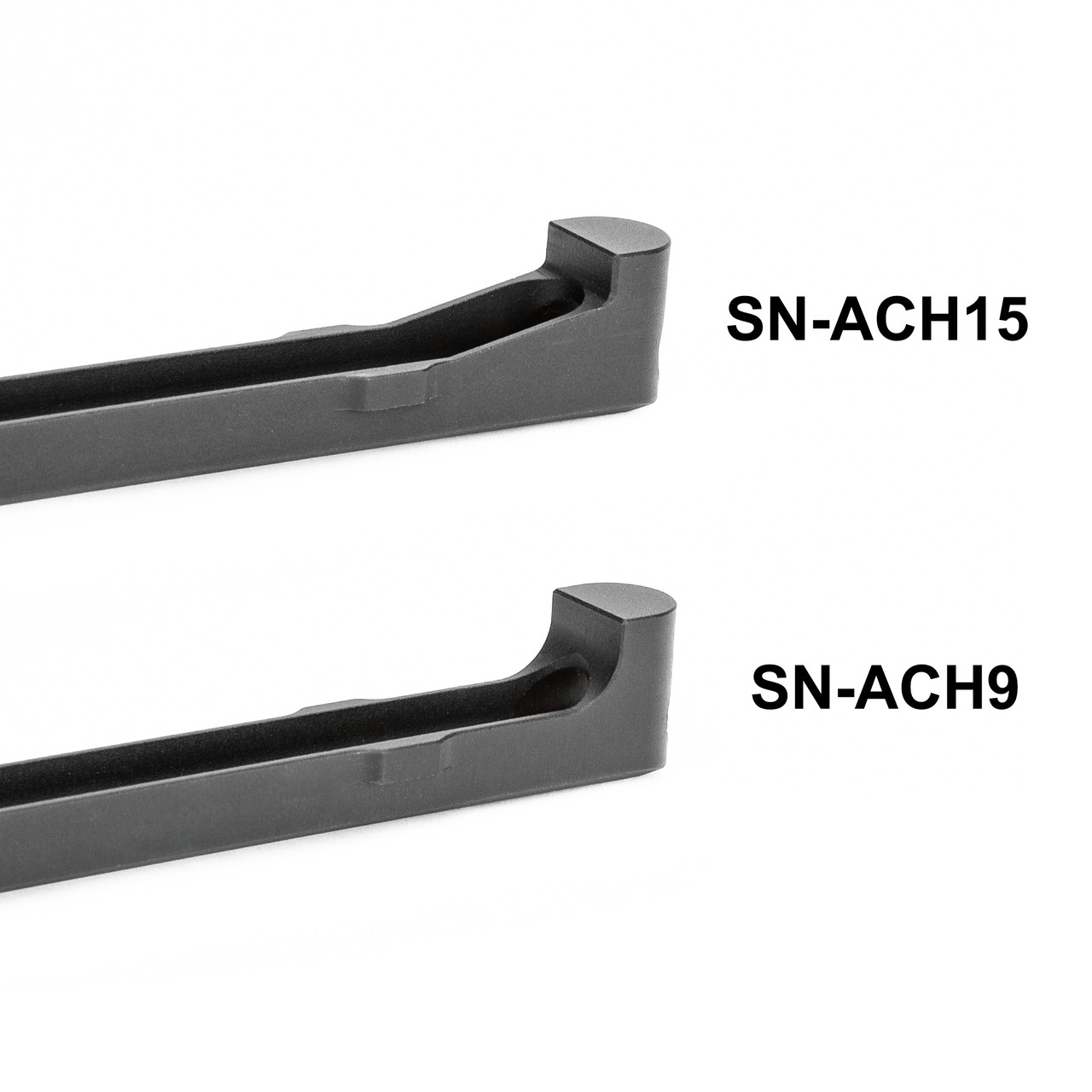

SN-ACH™ 9: Fits conventional nose geometry of standard 9mm BCGS (ex. Colt/direct blowback AR9s). It can also be used with an AR15 as it is an AR15 handle without our nose reinforcement, which inhibits compatibility with 9mm Colt BCGs.

SPECS:

• 7075-T6 Aluminum Construction
• Type III Hardcoat Anodized
• Supports Ambidextrous Users
• SN-ACH™ 15 Weight: 1.3oz
• SN-ACH™ 10 Weight: 1.4 oz
• SN-ACH™ 9 Weight: 1.3 oz

ADDITIONAL ACCESSORIES:

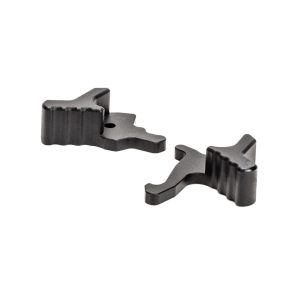

• SN-ACH™ Short Levers

Terra Brown Anodized Color Note: While we strive for consistency in the color of these components, there are some inherent differences in final color outcome that are out of our control due to the anodizing process which depend on many process parameters such as material alloy (6061 (Rails, optic mounts) 7075 (upper/lower receivers, charging handles, receiver extensions), material heat/lot, material process (extrusion, forging, impact extrusion, etc), material condition raw or machined/cut, anodizing water process temperature, acid etch time, rinse speed and time, dye concentration, anodize time, current intensity, blasting media condition, blasting angle variation, etc.  This is well known at this point among consumers in the industry with “fifty shades of FDE” colloquialisms describing the variations in color possible in anodizing of colors lighter than black.  The product you receive may be a somewhat different color than what is pictured due to these aforementioned variables in the electro-chemical process. Additionally, small cosmetic imperfections usually hidden by the black anodizing process are more easily seen due to the lighter pigment of the Terra Brown dye. Because these issues are inherent to the process, slight cosmetic imperfections may not be pulled from inventory and marked as a blem. This is a risk of purchasing a non-black product and should be expected to a degree. We will not sacrifice the functional performance of our products, and any issue that affects performance will not be sold. Anodizing fortunately doesn’t have the level of increased cost premium associated with the intensive labor involved in painting rifles (something we simply don’t have the available labor pool locally to support, nor do we believe the customers want to pay the premium for), so color being possible in that atmosphere at no additional cost is a major process benefit of anodizing. If the above mentioned conditions are unacceptable to you, we encourage you to purchase black anodized parts.
