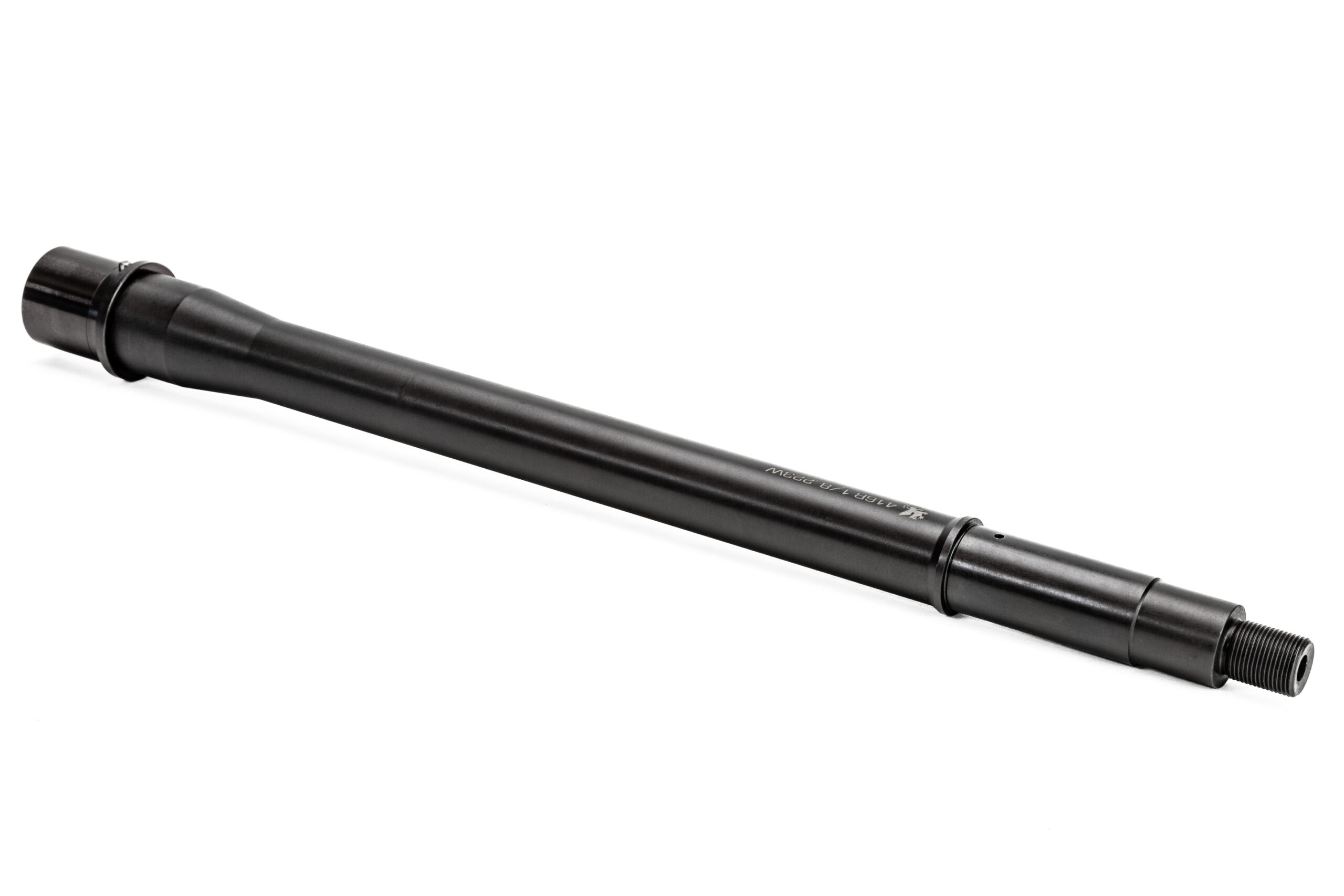

Griffin 12.5″ 416R 223 Wylde HEDP Barrel

Experience superior tactical performance, engineered precision, and exceptional reliability with the Griffin 12.5″ 416R 223 Wylde HEDP Barrel. Crafted to exact industry standards, this product delivers uncompromised durability and effectiveness in the field.

Features & Performance Overview

The Griffin 12.5″ 416R 223 Wylde HEDP Barrel is designed for tactical operators, target shooters, and firearm enthusiasts seeking peak functionality. Every component undergoes rigorous testing to guarantee durability, smooth operation, and optimal safety.

Trusted External Resources

Learn more about firearms safety, technical specifications, and search benchmarks via trusted authority resources:
Google |
Bing |
DuckDuckGo.

Related Internal Links

Explore more premium firearm accessories and suppressor technology directly on Griffin Armament.

Detailed Product Description

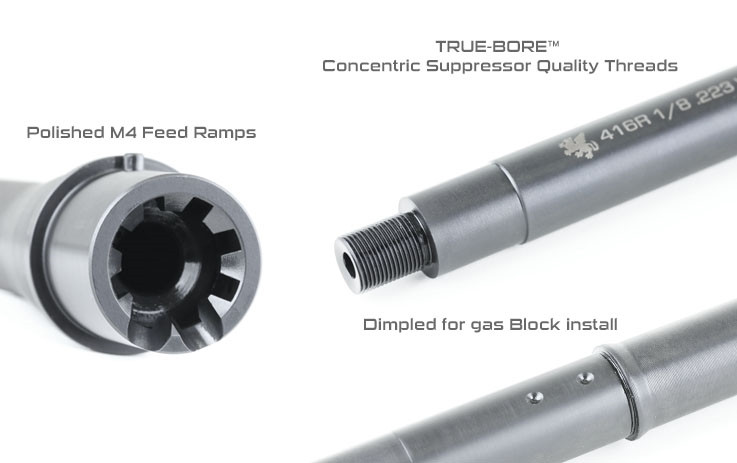

The Griffin HEDP™ Barrels provide High Endurance Dual Purpose functionality- offering high durability and precision accuracy. Nitrided 416R stainless steel provides the highest possible hardness and longest throat life available with match grade bore dimensions and bore finish. HEDP barrel bores are hand lapped, ensuring batch to batch consistency and accuracy. TRUE-BORE™ concentric suppressor grade threads provide an optimized thread interface for your silencer regardless of brand or model. M4 feed ramps and chambers are polished prior to nitriding for smooth reliable feeding, chambering, and extraction. Gas ports were carefully engineered to provide reliable function suppressed or unsuppressed with 5.56 NATO ammunition. M4A1 contour diameter between the chamber and gas block for minimal POI shift with suppressors and maximum accuracy and durability while maintaining field weight.

5R rifling is believed by many to be superior to conventional rifling, reducing bullet deformation, and barrel fouling, affording more consistent accuracy, reduction of wear (greater life), and greater ease of cleaning.  5R rifling was used in the legendary Army M24 Sniper Weapon System (SWS) and those rifles were found to meet or exceed accuracy requirements at over 20,000 rounds fired.

The Gas Block (if added) can be pinned by a trained gunsmith. Alternatively end users can quickly mount their block with the included set screws. Proficient builders should use a carbide tipped 1/8″ drill bit to complete the pin hole prior to pressing the gas block splined pin. (splined pin installation is optional)

Barrel weight is 25.1 oz. Gas Block, if desired, can be added on for an additional fee.

Features

• 12.5″ barrel length
• 416R SS barrel manufactured from stress relieved certified barrel steel
• Black nitrided for extended service life
• Magnetic particle inspected
• Button rifled
• 5R rifling offering less constriction on the bullet
• 223 Wylde chamber for optimal accuracy
• Mid-length gas for softer recoil characteristics
• .750″ gas block journal
• M4A1 diameter for reduced POI shift / Increased Accuracy & Durability
• Air gauged and hand lapped bore
• Polished chamber and M4 feed ramps
• TRU-BORE™ suppressor quality threads
• Suppressor optimized gas ports
• .625″, 1/2×28 industry standard threads
• Barrel weight : 25.1oz
• 26.6oz weight (with gas block installed)
• 1/8 Twist
