Griffin 1-10×28 MIL-R SFP Riflescope

Experience superior tactical performance, engineered precision, and exceptional reliability with the Griffin 1-10×28 MIL-R SFP Riflescope. Crafted to exact industry standards, this product delivers uncompromised durability and effectiveness in the field.

Features & Performance Overview

The Griffin 1-10×28 MIL-R SFP Riflescope is designed for tactical operators, target shooters, and firearm enthusiasts seeking peak functionality. Every component undergoes rigorous testing to guarantee durability, smooth operation, and optimal safety.

Trusted External Resources

Learn more about firearms safety, technical specifications, and search benchmarks via trusted authority resources:
Google |
Bing |
DuckDuckGo.

Related Internal Links

Explore more premium firearm accessories and suppressor technology directly on Griffin Armament.

Detailed Product Description

The Griffin 1-10×28 MIL-R SFP Riflescope is an incredibly utility featured, high quality optic at an incredible price point. The 1-10x magnification range makes engaging targets a breeze from close-range, to medium to long-range applications. The minimal-parallax, clear sight picture of this optic combined with 12 brightness settings makes target acquisition fast and natural in a variety of lighting conditions from bright sunny days, to dark cloudy nights. The fully-housed hard anodized aluminum body provides robust protection from rough handling.  The Griffin 1-10x MIL-R SFP Riflescope is ready for use right out of the box and includes Griffin branded premium soft rubber flip-up scope caps, Griffin microfiber cloth, and a CR2032 battery.

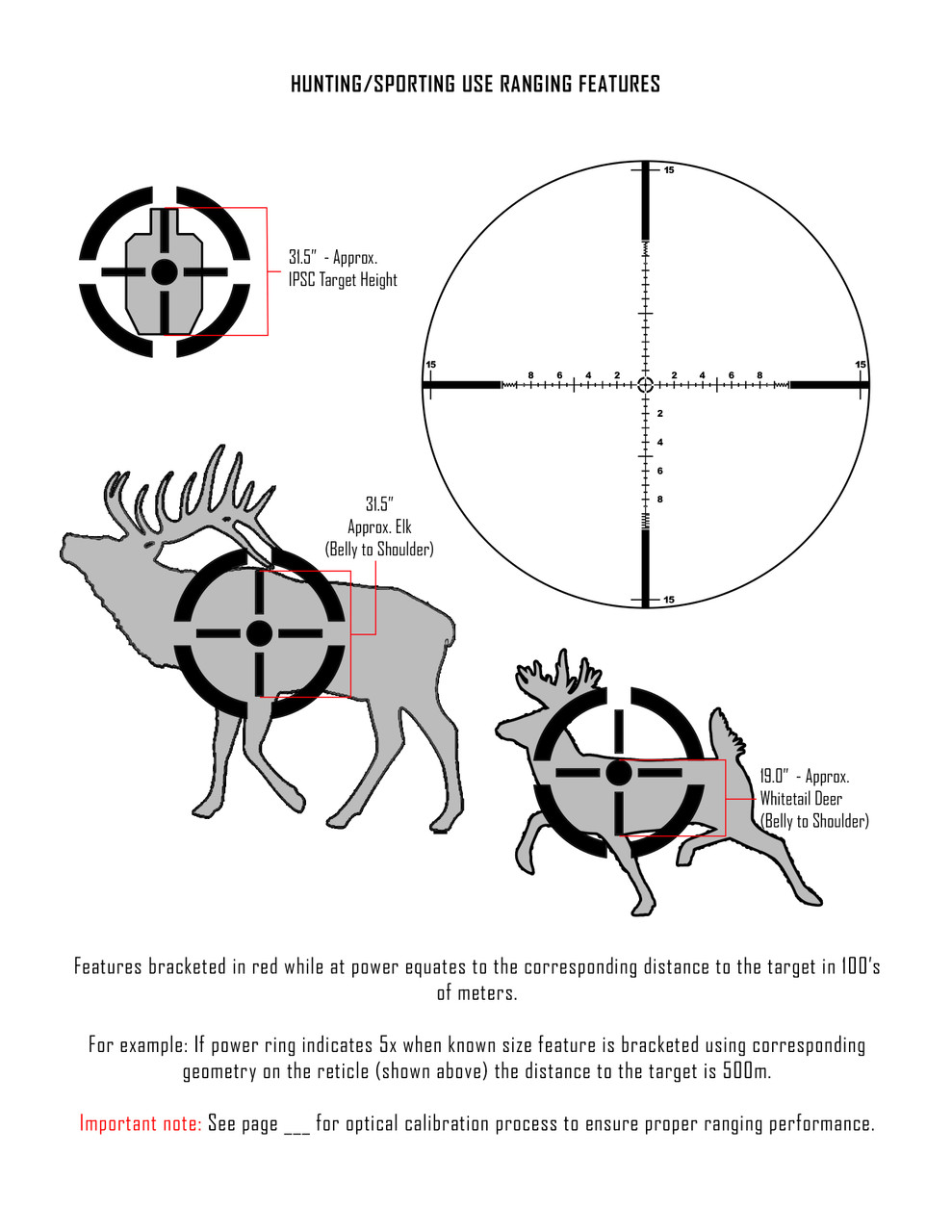

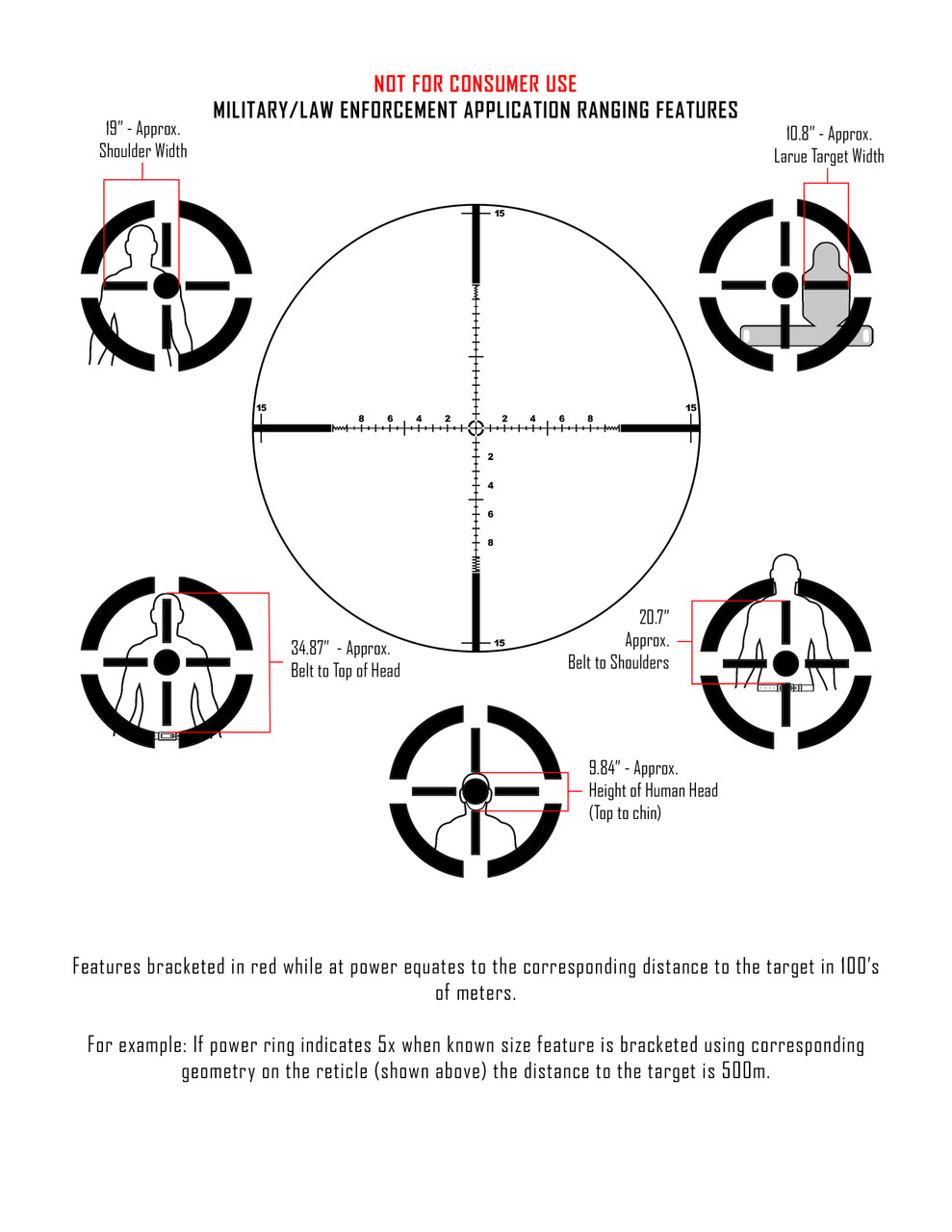

The second focal plane MIL/Radian reticle provides Mil relation formula ranging capability as well as Mil ballistic holds functionality at 10x magnification, and features auto ranging geometry for common known-size targets in a feature inspired by the Redfield ART TEL 3-9x optic used on the XM21 in Vietnam (refer to manual for more information). When a known-size target is properly bracketed using corresponding geometry and the magnification ring, the range to the target is provided by the power level setting (i.e. If power ring indicates 5x, and known-size target is bracketed within corresponding geometry, distance to the target is 500m).

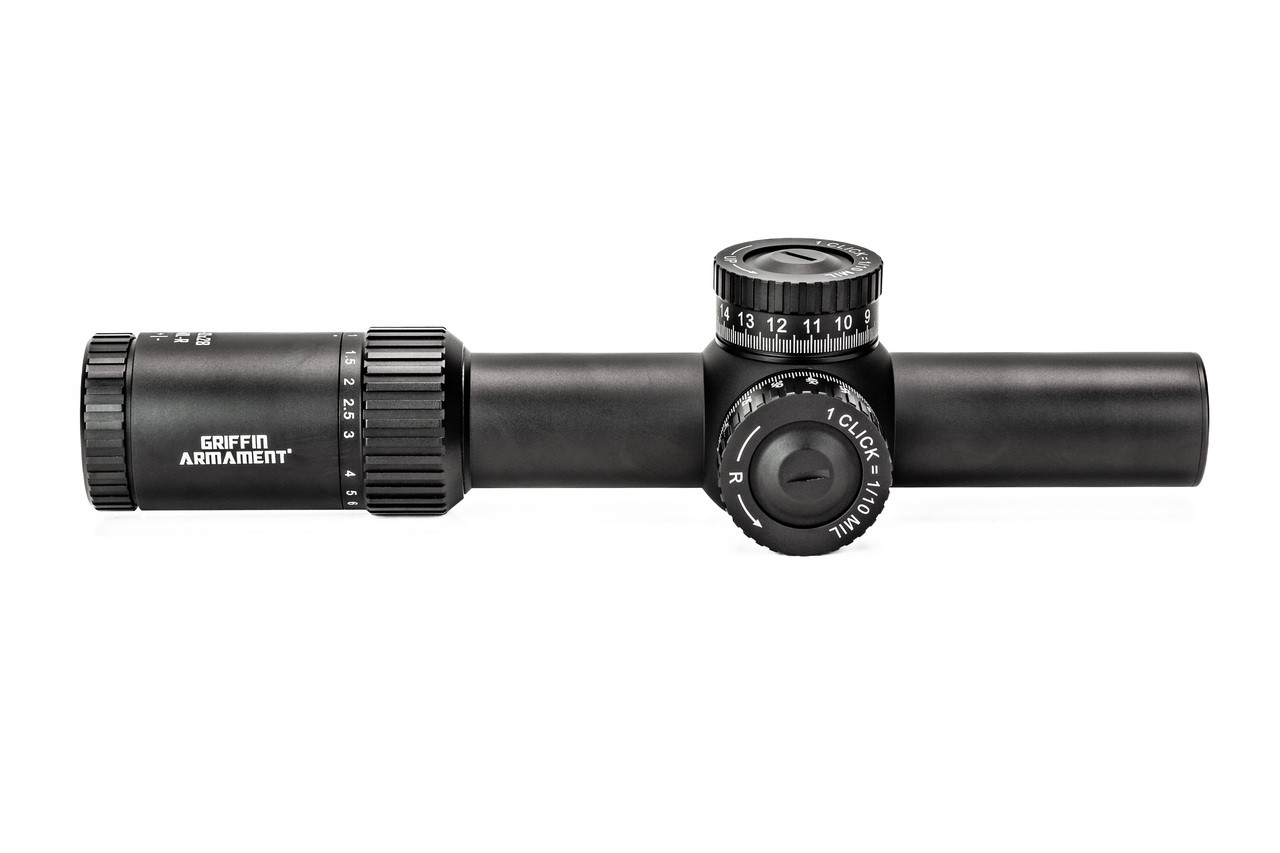

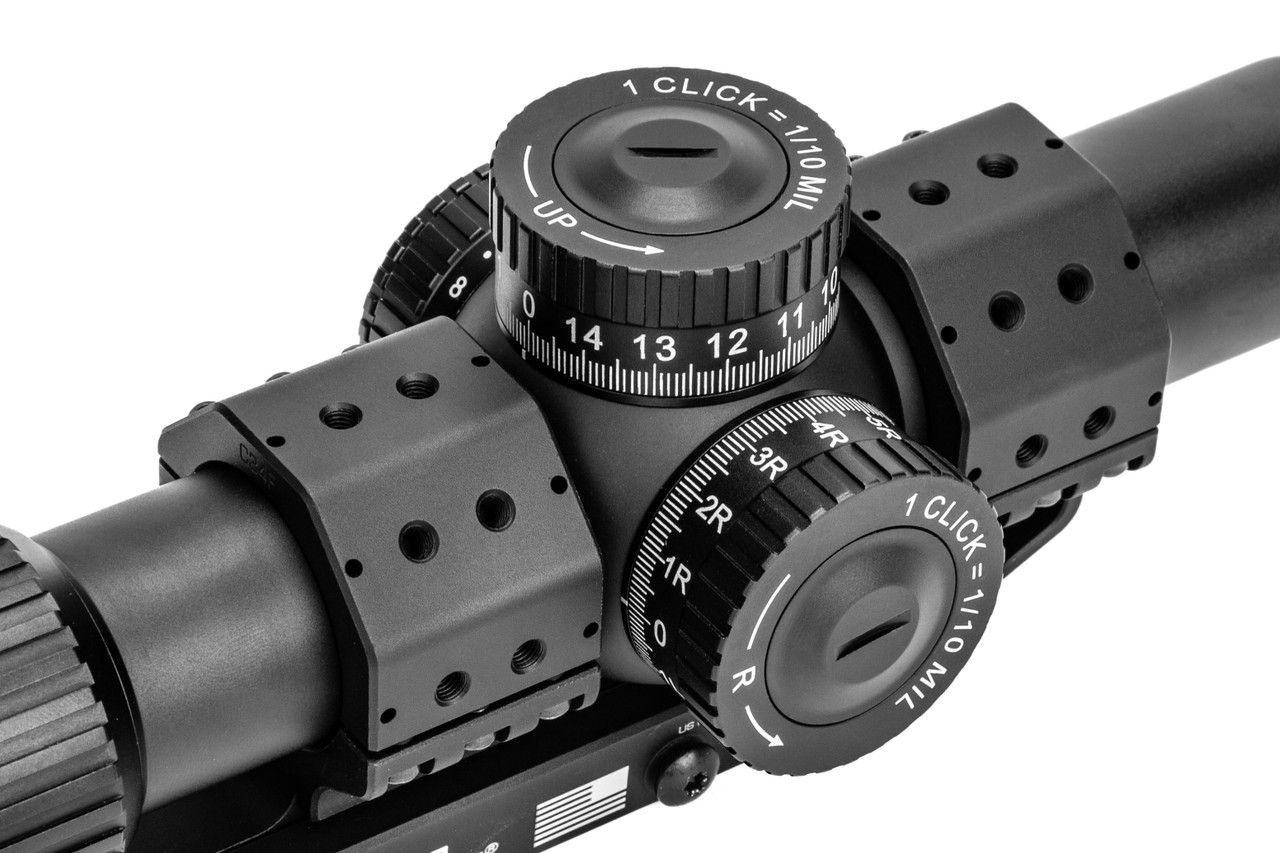

This riflescope adjusts for windage and elevation in 1/10th MRAD increments allowing precise zeroing of the optic dependent on range and windage. Windage knobs provide stops to prevent loss of zero at 7 mils in either direction from zero. A provided zero stop ring stops Elevation adjustment at 14.5+ MIL and affords -.5MIL from zero, ensuring you don’t have to worry when some random person picks up your rifle and twists the knobs like a newb.  ZIP back to windage and elevation zero and you are good to go. The windage/adjustment turrets provide audible/haptic tactile feedback for confidence-inspiring adjustments that can be made without needing to look at the turrets. The ± 2 dioptric focus ring allows optical focus adjustment to meet the geometry of your eye and should be calibrated to ensure proper function of ranging/mil adjustment features (calibration of ocular focus covered in the manual). Illumination of the reticle can be controlled via the illumination turret and affords 12 brightness settings with 12 off positions between each setting allowing the shooter to quickly return to their preferred brightness level in one simple click of the turret.

What’s in the Box:

• Griffin 1-10x MIL-R Riflescope
• Griffin Branded Flip-Up Scope Caps
• CR2032 Battery
• Griffin Microfiber Cloth
• Instruction Card

CLICK HERE to view product manual

Features:

• Red or Green Illumination Available
• Glass-Etched MIL/Radian Reticle
• 12 Brightness Settings w/ 12 off positions between each
• 28mm Objective Lens Diameter
• 1/10th MRAD Adjustment Increment
• 34mm Tube Diameter
• 90mm (3.5″) Eye Relief
• Perpetual Lifetime Warranty™ (2 Years on Electronics)

Specs:

Length: 10.8″

Tube Diameter: 34mm

Knob Width: 3.11″

Weight: 25.75 oz

Magnification: 1-10x

FOV: 23° – 2.3° | 40.7m – 4m | 122ft – 12ft

Max Elev. Adjustment: 28 MIL

Max Windage Adjustment: 14 MIL

Dioptric Fast Adjust: 2 Diopters

Parallax Setting: Fixed @ 137m

Eye Relief: 90mm (3.5in)
