DUAL-LOK® Minimalist Brake

Name: DUAL-LOK® Minimalist Brake - griffin armament
Price: 89.95 USD
Availability: InStock

Experience superior tactical performance, engineered precision, and exceptional reliability with the DUAL-LOK® Minimalist Brake. Crafted to exact industry standards, this product delivers uncompromised durability and effectiveness in the field.

Features & Performance Overview

The DUAL-LOK® Minimalist Brake is designed for tactical operators, target shooters, and firearm enthusiasts seeking peak functionality. Every component undergoes rigorous testing to guarantee durability, smooth operation, and optimal safety.

Trusted External Resources

Learn more about firearms safety, technical specifications, and search benchmarks via trusted authority resources:
Google |
Bing |
DuckDuckGo.

Detailed Product Description

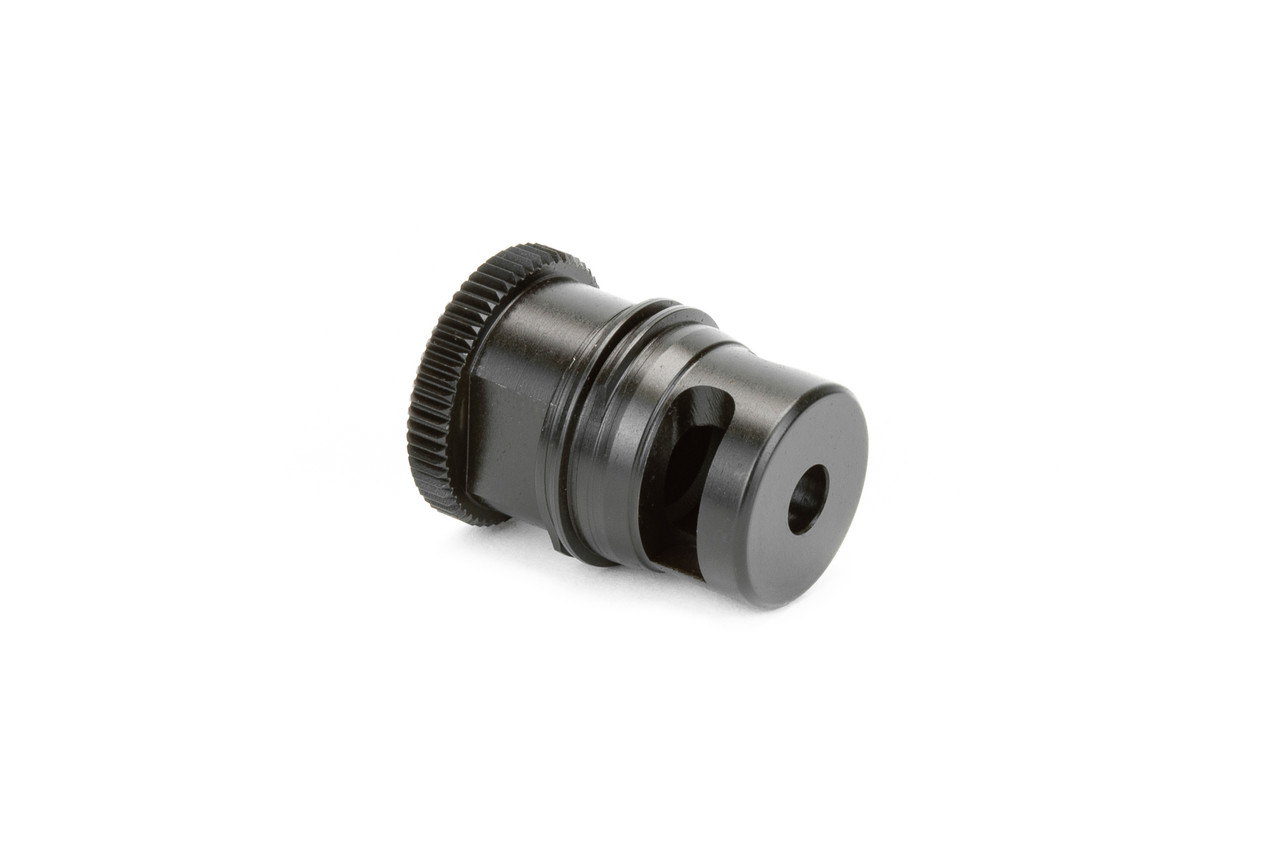

Griffin Armament is proud to introduce DUAL-LOK®, our newest QD mounting system for rifle suppressors. The DUAL-LOK® system is comprised from two parts, the DUAL-LOK® Mount and the DUAL-LOK® muzzle device (of your choice). This page is for the DUAL-LOK® Titanium Minimalist Brake.

The muzzle device integrates 60 machined mounting position grooves, which is doubled by the mount’s two locking positions, hence the double entendre DUAL-LOK®. How is this achieved? The mounts’ two locking positions are machined out of phase of one another by 3 degrees which provides the 120 effective locking positions and ensures a tightly mounted and locked suppressor. When the suppressor is installed, only one of the two positions will generally function by allowing the spring to push the locking collar rearward over the splines.

Constructed of 17-4 PH stainless steel, the DUAL-LOK® Minimalist Brake has a wear resistant baffle that increases suppressor service life. Additionally the brake features compensating ports that help reduce muzzle climb while assisting in reducing felt recoil. The Minimalist Brake weighs 2.6 ounces and is less than an 1.5″ long, adding minimal weight and length compared to that of most competing suppressor mounts. The lighter weight reduces suppressor system weight while making the host firearm barrel lighter and more responsive to the shooter. Each brake comes with a shim set for timing.

The 6.5mm option allows for optimal braking performance and sound performance with a suppressor on 6.5 grendel, 6.5 creedmoor, 260 remington, 6.5×47 Lapua etc.

Diameter:	1.07″ [grooves] .93″ [unit]
OAL:	1.42″
Weight:	2.3 oz
Materials:	17-4 Stainless Steel
Finish:	QPQ Nitrided

KEY POINTS :

Utility patent pending
Wear free mounting system, requires no consumable parts
Taper lock interface ensures security and accuracy
120 effective positions ensure a rock-solid suppressor mount and provide extremely low POI shift
Sacrificial baffle to extend the service life of your silencer
Lighter than most market competitive suppressor mounts
17-4 PH Stainless steel
Nitrided for increased surface hardness, corrosion, and wear resistance
¾” wrench flats on muzzle devices
Shim set Included
